GM 1.6L Ecotec Turbo-Diesel Bypass Oil Filter Kit (Chevrolet Cruze, Chevrolet Equinox, GMC Terrain)
Ecotec 1.6L Turbo-Diesel Bypass Oil Filter Kit
Compatible vehicles:
Chevrolet Cruze (2017 - present)
Chevrolet Equinox (2018)
GMC Terrain (2018)
Opel/Vauxhall Astra (Europe, 2015)
Parts Included In This Kit
- 1 EXTREME 1 bypass oil filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
- 1 EXTREME 1 filter element (EX1SE) with o-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 9ft of hose to be cut to your preference (LW06BK)
- 1 Mounting bracket with hardware (ZBRCKX12)
Pressure Port Options

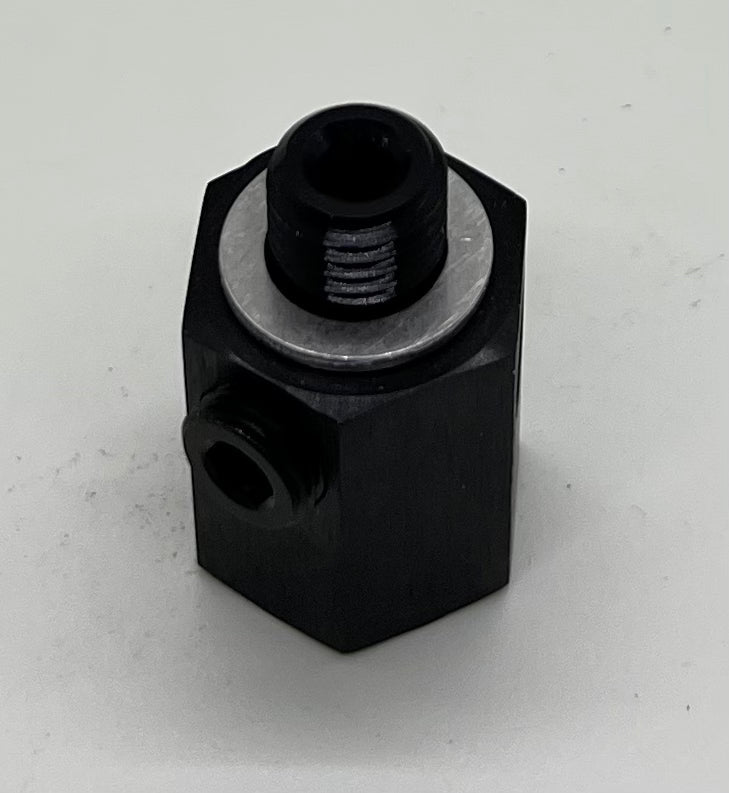

Oil Pressure Sensor T-Fitting Option:
Verify the thread size of your oil pressure sensor and select from these options:
• M10X1.5 (TM1015B + AN06-02MS90)
• M12X1.75 (TM1275B + AN06-02MS90)
• M16X1.5 (TM1615B + AN06-02MS90)
Oil filter cap plug option:
This option uses the oil filter cap plug.
- 1 Fitting (M175B) with fitting (AN06-02MS90)
Return Port

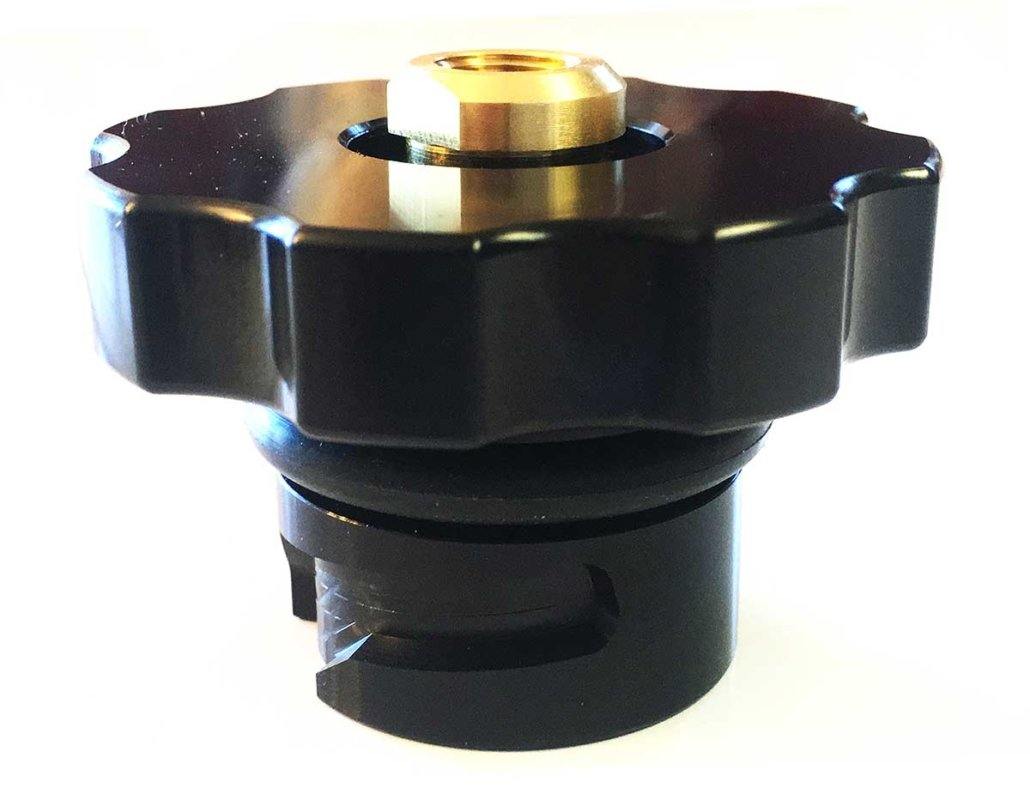

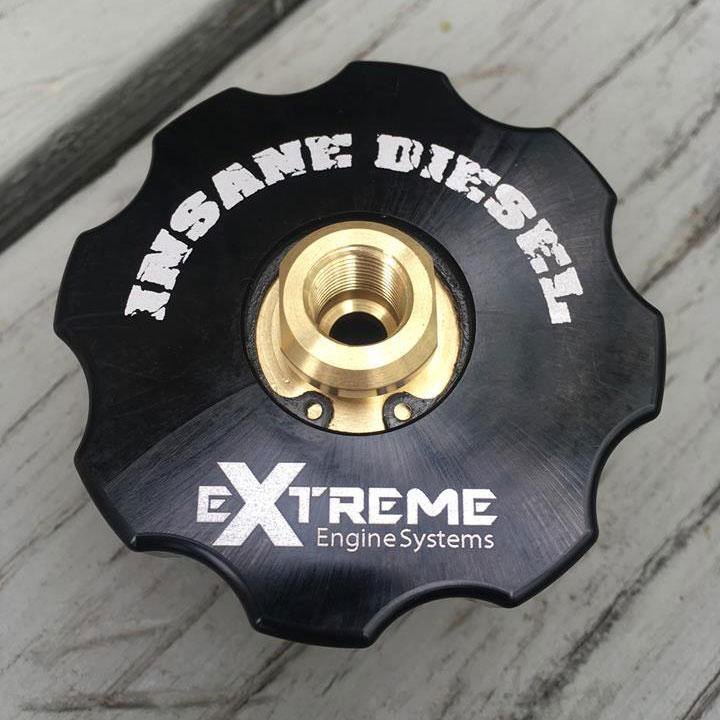

- 1 Oil filler cap (FLLCDUO) with o-ring (ODO) and fitting (AN06-02MS90)
Installation Notes:
• This kit does not have an official mounting location yet, please refer to the "custom installations and mounting details"
• Watch the general installation video for more information
• Installation/assembly required by professional mechanic
BENEFITS OF ULTRA-FINE OIL FILTRATION
• Radically extend engine life 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3 stage filtration down to 1 micron, won't clog or drop efficiency like others filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses & seals
• Extend oil change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4000X more contaminants than OEM filters
• Easy installation and maintenance
• 15K (or up to *25K miles) 250 hours, or 1 year before maintenance is needed
• *Condition based oil analysis monitoring recommended when extending oil/filter change intervals
Learn More About the EXTREME Bypass Oil Filter System Here
