Ford 7.3L Power Stroke Bypass Oil Filter Frame Mount Kit
Ford 7.3L Power Stroke Bypass Oil Filter Frame Mount Kit

Ford 7.3L Power Stroke Bypass Oil Filter Frame Mount Kit

$564.22
$564.22
Options
Return Port Fitting

Ford Power Stroke® 7.3L Bypass Oil Filter Frame Mount Kit

This complete frame-mount kit includes the components needed to install an Insane Diesel EXTREME 2 bypass oil filtration system on a Ford 7.3L Power Stroke® engine.

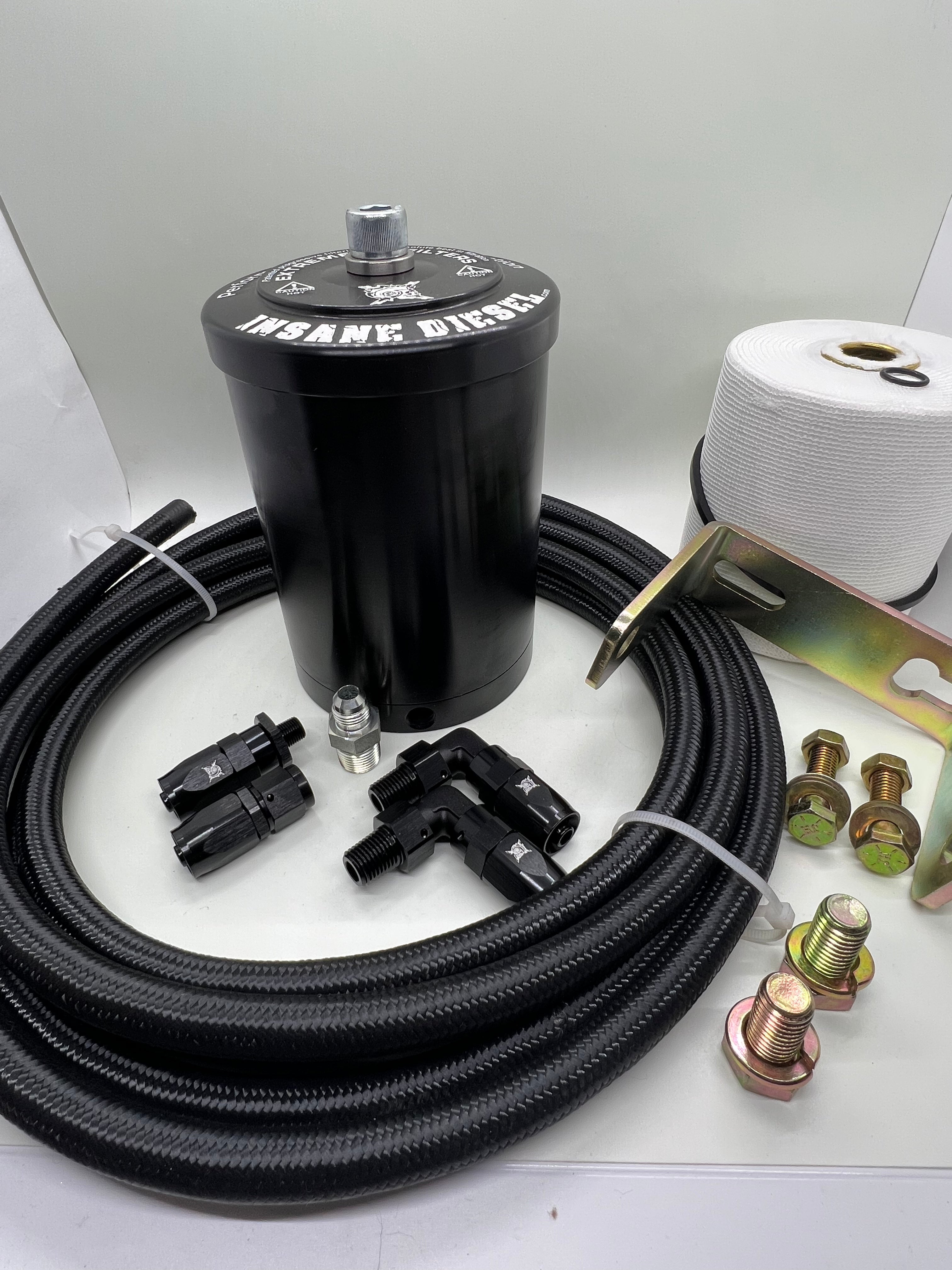

Parts Included in This Kit

  • 1 EXTREME 2 bypass oil filter housing (HX2SHBK, HX2SHBLU, or HX2SHRED)
  • 1 EXTREME 2 filter element (EX2ME) with O-rings (GX1/2)
  • 2 Inlet/outlet fittings (AN06-04MS)
  • 1 Pressure port fitting (AN06-02MS)
  • 9 feet of hose (LW06BK)
    Hose ships uncut as one continuous 9-foot length so it can be divided and routed according to the selected mounting location.
  • 1 Mounting bracket with hardware (ZBRCKX12)
  • 1 Selected oil return port fitting

Choose Your Oil Return Fitting

Not sure which option to select? Choose the Standard Return.

The Standard Return is the recommended option for most installations. It is the primary configuration shown in our current installation guide, video, and product imagery.

Standard Return — Recommended Default

Select this option when you do not have a specific hose-routing preference. The straight fitting allows the return hose to run directly away from the return port and works well for most typical installations.

  • 1 Straight return port fitting (AN06-06MS)

90-Degree Elbow Return — Optional Routing Choice

Select the elbow fitting when you prefer the return hose to immediately turn 90 degrees after leaving the return port. This option was added for customers who want to route the hose in a different direction or need additional flexibility around nearby components.

The elbow option does not change the filtration system or its performance. It only changes the direction of the return hose connection.

  • 1 90-degree return port fitting (AN06-06MS90)

Installation Guides

Primary Installation Video:
Ford 7.3L Power Stroke® Installation Video

Additional Legacy Installation Resources:

Installation and assembly must be completed by a certified mechanic.

Benefits of Ultra-Fine Oil Filtration

  • Radically extend engine life up to 2X
  • Reduce engine wear
  • Keep oil up to 4X cleaner than new oil
  • Progressive three-stage filtration down to 1 micron
  • Designed to resist clogging and efficiency loss
  • Reduce soot and carbon buildup
  • Reduce erosion of hoses and seals
  • Support extended oil change intervals
  • Remove 99.9% of moisture
  • Improve fuel mileage
  • Improve oil cooling
  • Large housing holds up to 4,000X more contaminants than OEM filters
  • Easy installation and maintenance
  • Service interval of 15,000 miles, or up to 25,000 miles based on operating conditions, 250 hours, or one year

Condition-based oil analysis monitoring is recommended when extending oil or filter change intervals.

Learn More About the EXTREME Bypass Oil Filter System

View Our Bypass Oil Filter FAQ
