Ford 7.3L Godzilla | 6.8 Minizilla Bypass Oil Filter Kit
Ford 7.3L Godzilla | 6.8 Minizilla Bypass Oil Filter Kit
Years: 2020 to PRESENT

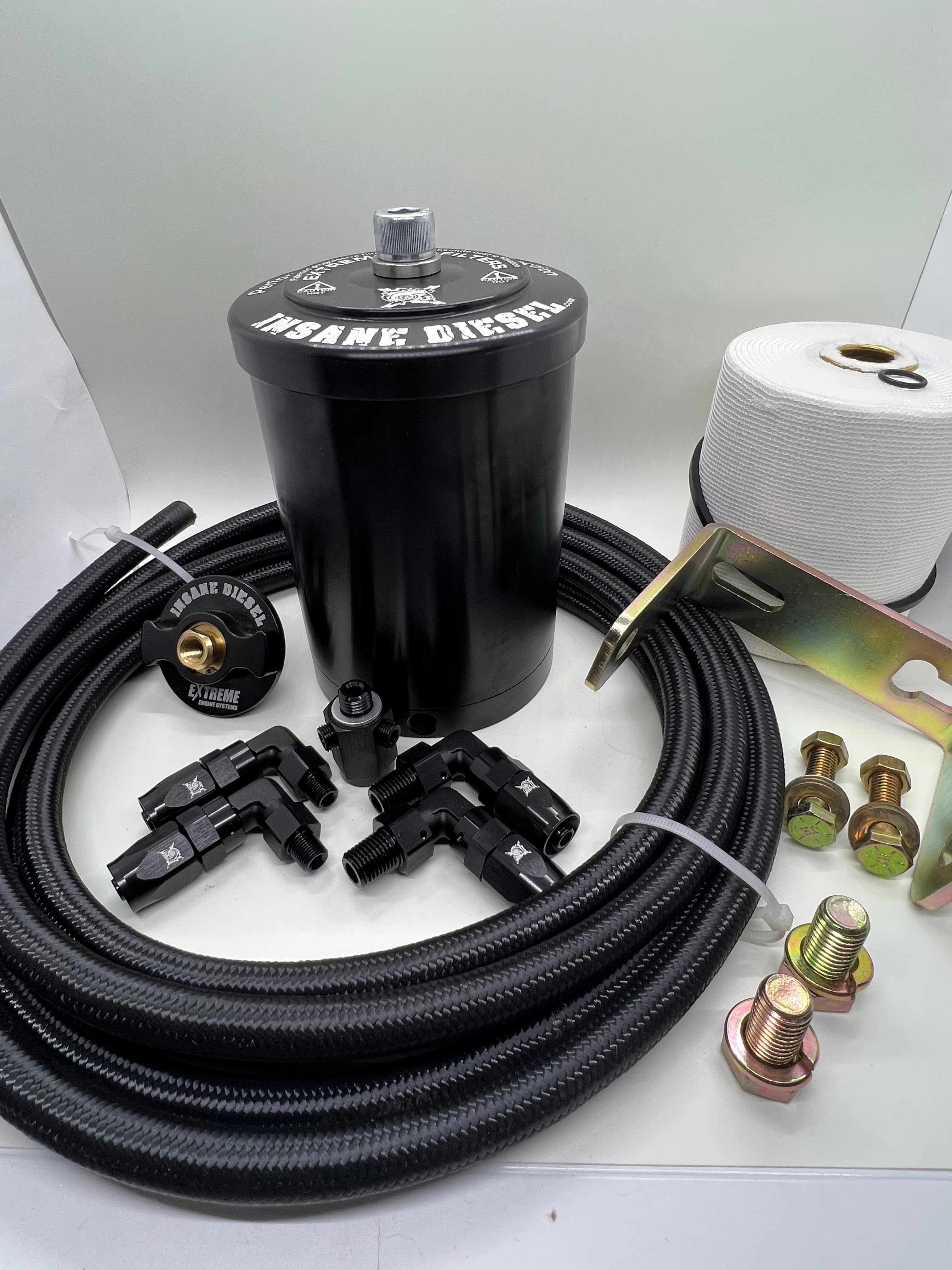

Parts Included In This Kit
- 1 EXTREME2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
- 1 EXTREME2 filter element (EX2ME) with o-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 15’ of hose to be cut to your preference (LW06BK)
Pressure Port
- 1 Tee fitting system (TM1215B) with washer (C12) and fittings (AN06-02MP90 + AN06-06FJ)
Return Port

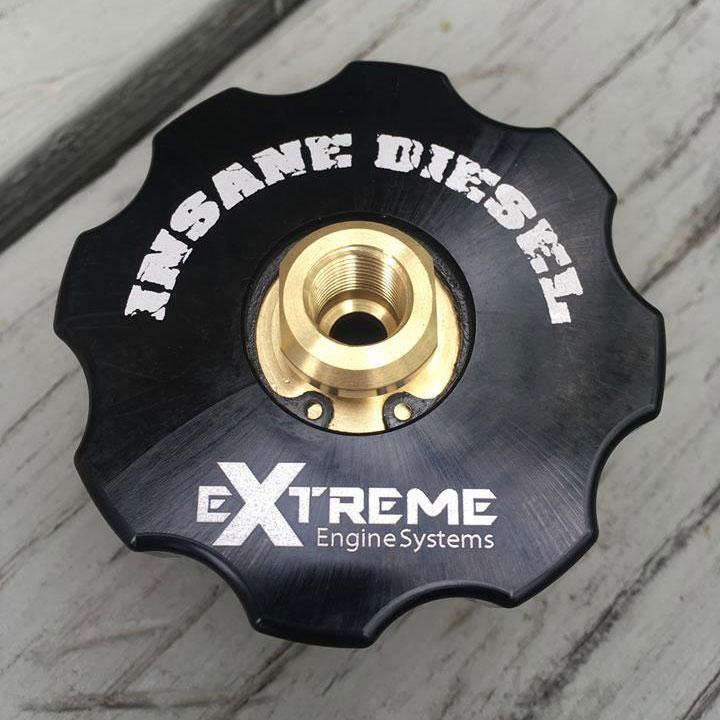

- 1 Oil filler cap with swivel return port (FLLC35FO) with o-ring (O35FO) and fitting (AN06-02MS90)
Mounting Options

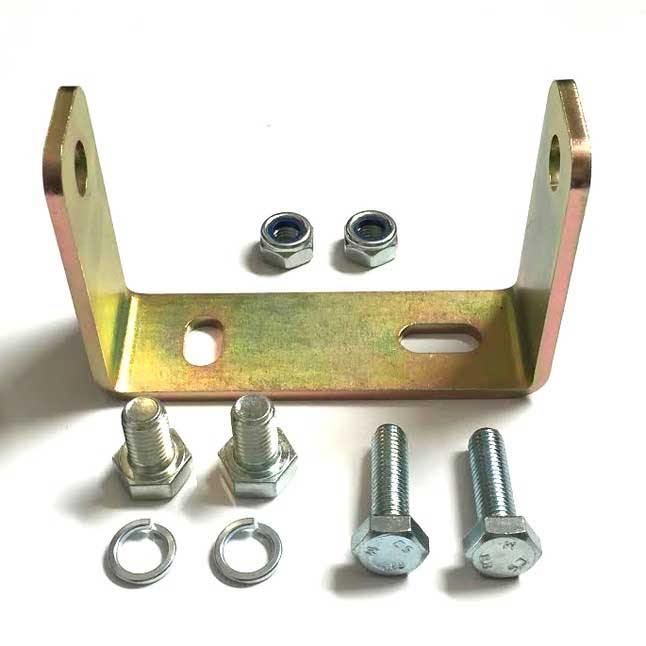

Standard Frame Mount Bracket
(for vehicles without auto powered running board)
-
1 Mounting bracket with hardware (ZBRCKX12)
Auto Powered Running Board Frame Mount
(use to avoid auto running board retraction area)
- 1 Mounting bracket with hardware (AUTO67RNNG) *No hardware included. Requires 2 Ford part# 5579111 and 2 Ford part# 5400728.
Installation is similar to the 6.7 Powerstroke kit
BENEFITS OF ULTRA-FINE OIL FILTRATION
• Radically extend engine life 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3 stage filtration down to 1 micron, won't clog or drop efficiency like others filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses & seals
• Extend oil change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4000X more contaminants than OEM filters
• Easy installation and maintenance
• 15K (or up to *25K miles) 250 hours, or 1 year before maintenance is needed
• *Condition based oil analysis monitoring recommended when extending oil/filter change intervals
Learn More About the EXTREME Bypass Oil Filter System Here
- *must be installed by a certified professional
- *aluminum straight thread fittings are 60 INCH lbs of torque maximum.
- *aluminum tapered thread fittings are 122 INCH lbs or 11 FOOT lbs of torque maximum.
