Detroit Bypass Oil Filter Kit (Multi-Engine Compatibility)
Detroit Bypass Oil Filter Kit (Multi-Engine Compatibility)

Detroit Bypass Oil Filter Kit (Multi-Engine Compatibility)

$1,729.98
$1,729.98
Pressure & Return Port Options
Oil Sample Valve Option

Detroit Multi-Engine Compatibility

DD5, DD8, DD13, DD15, DD16 and Detroit 60

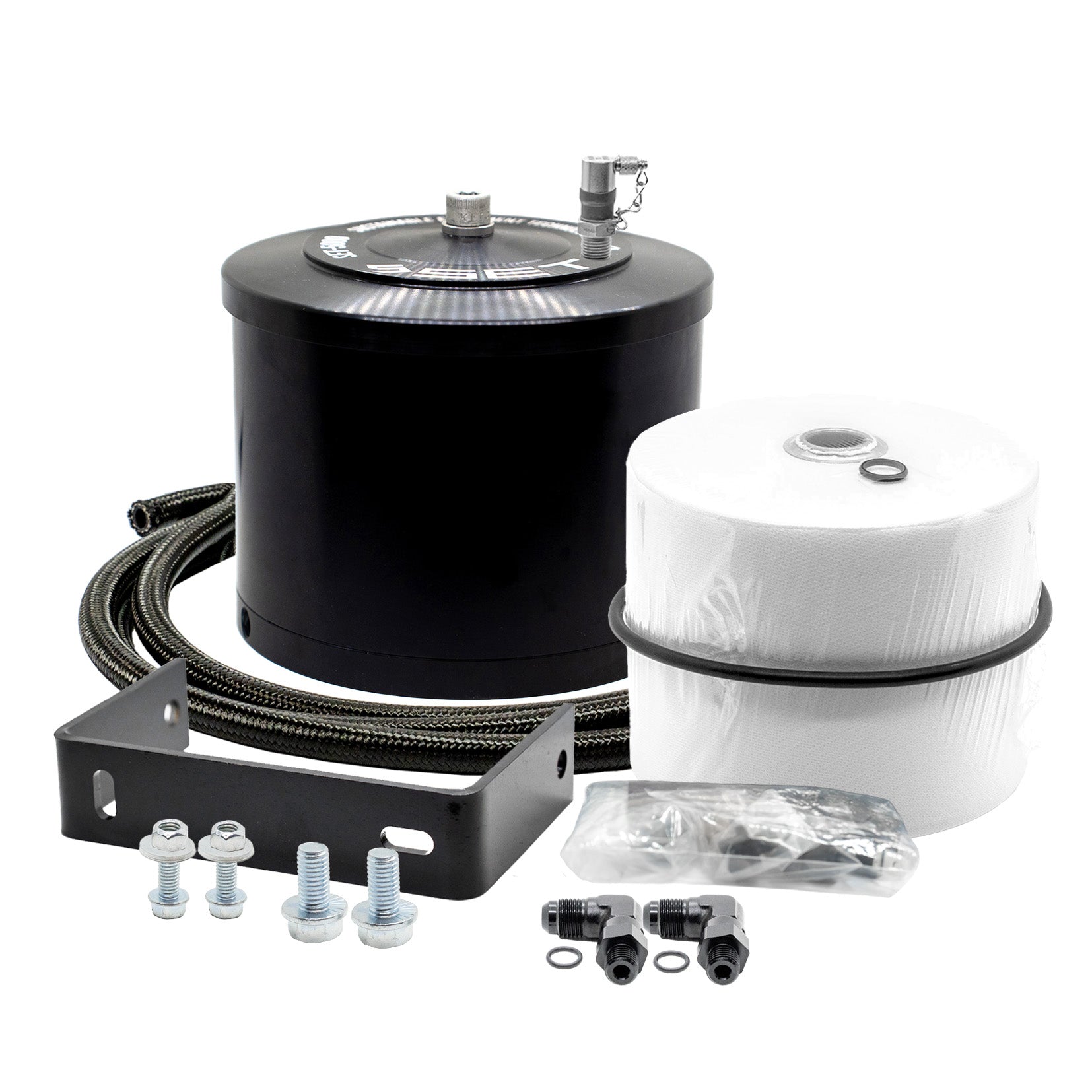

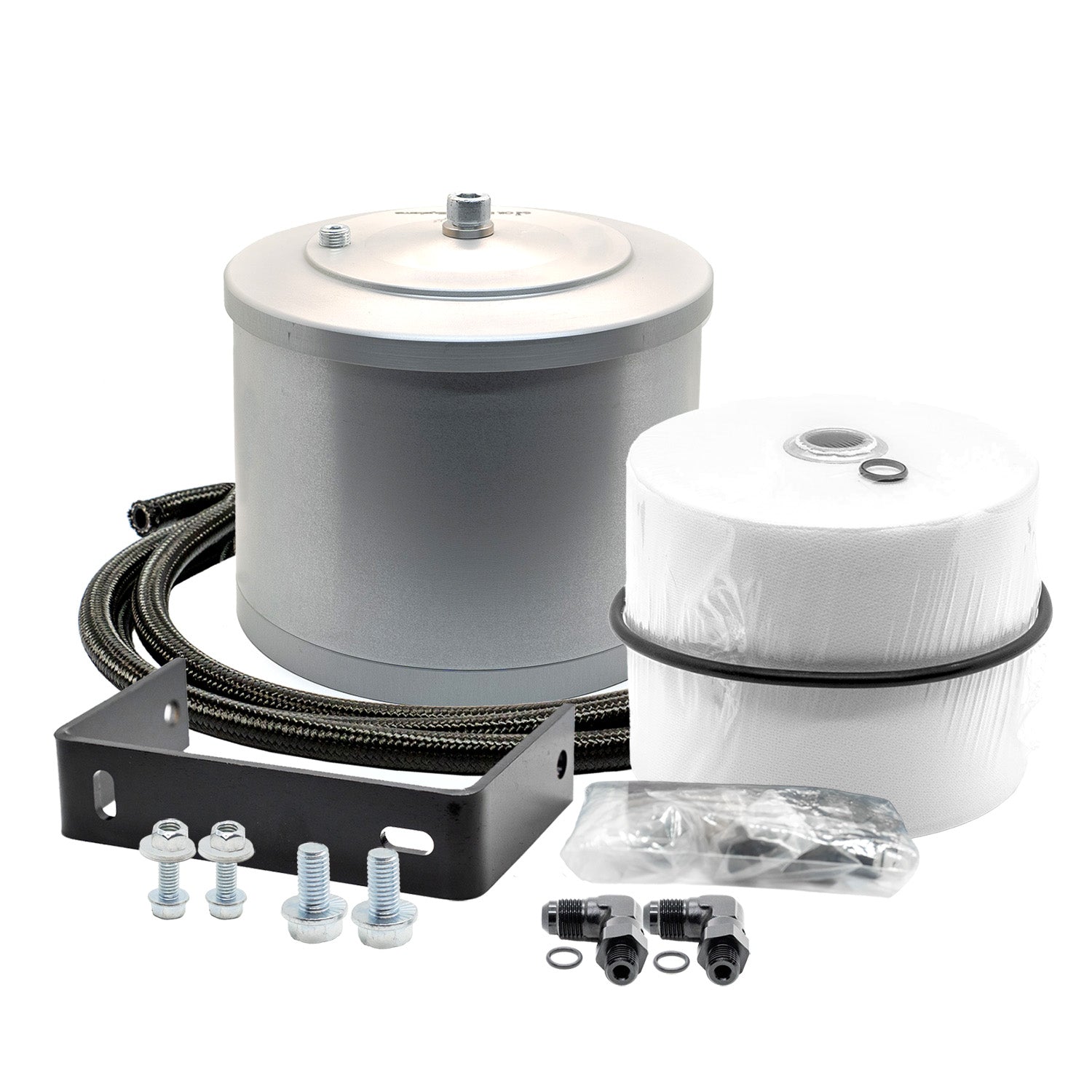

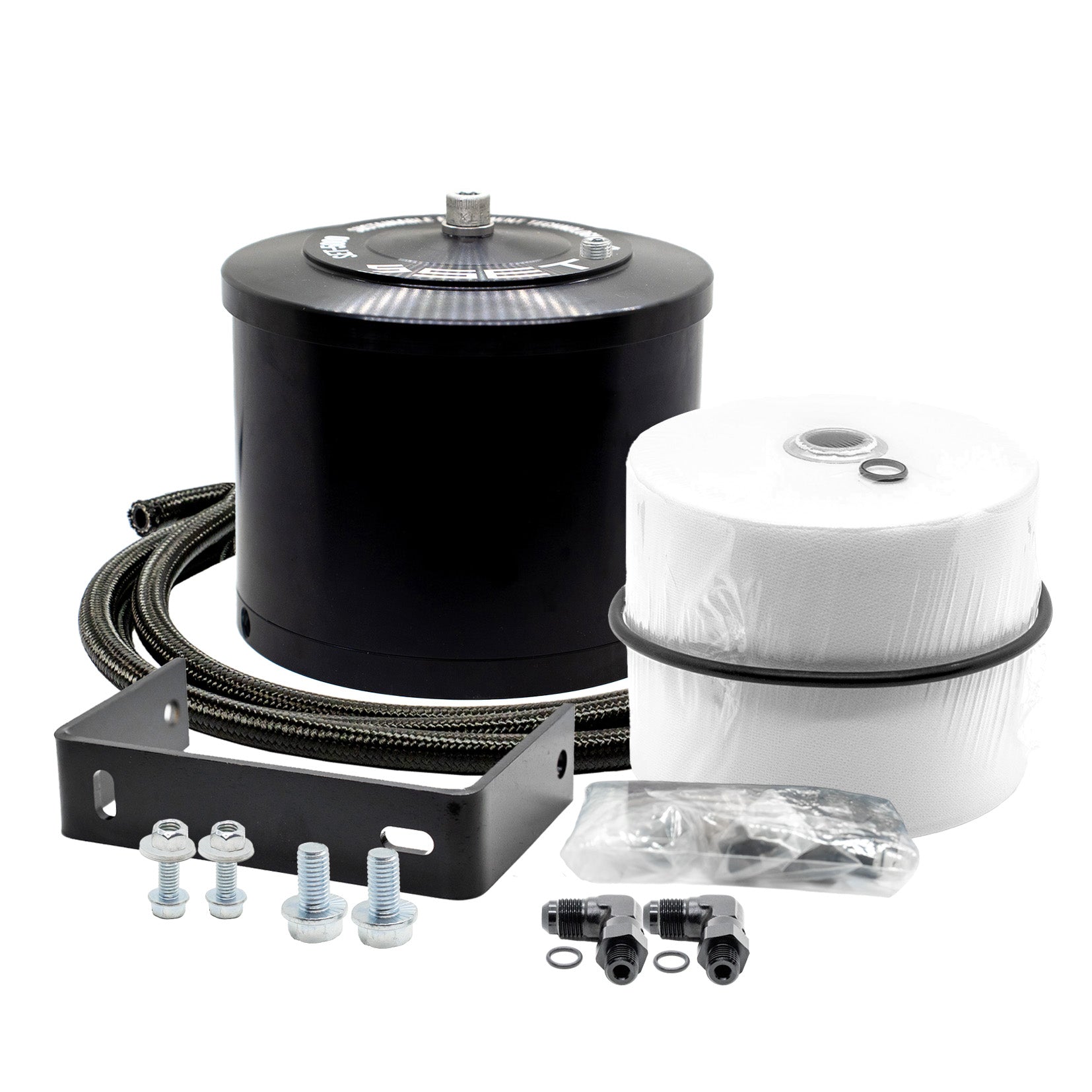

Parts Included In This Kit

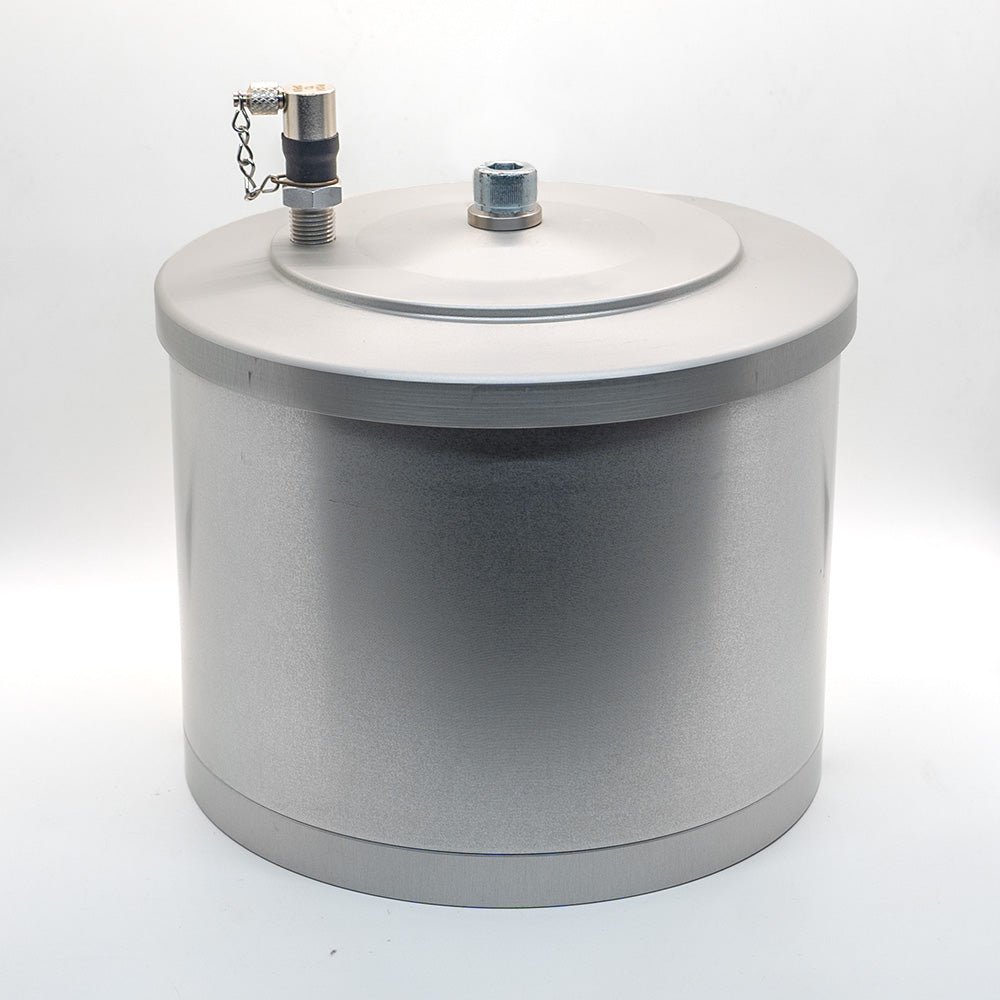

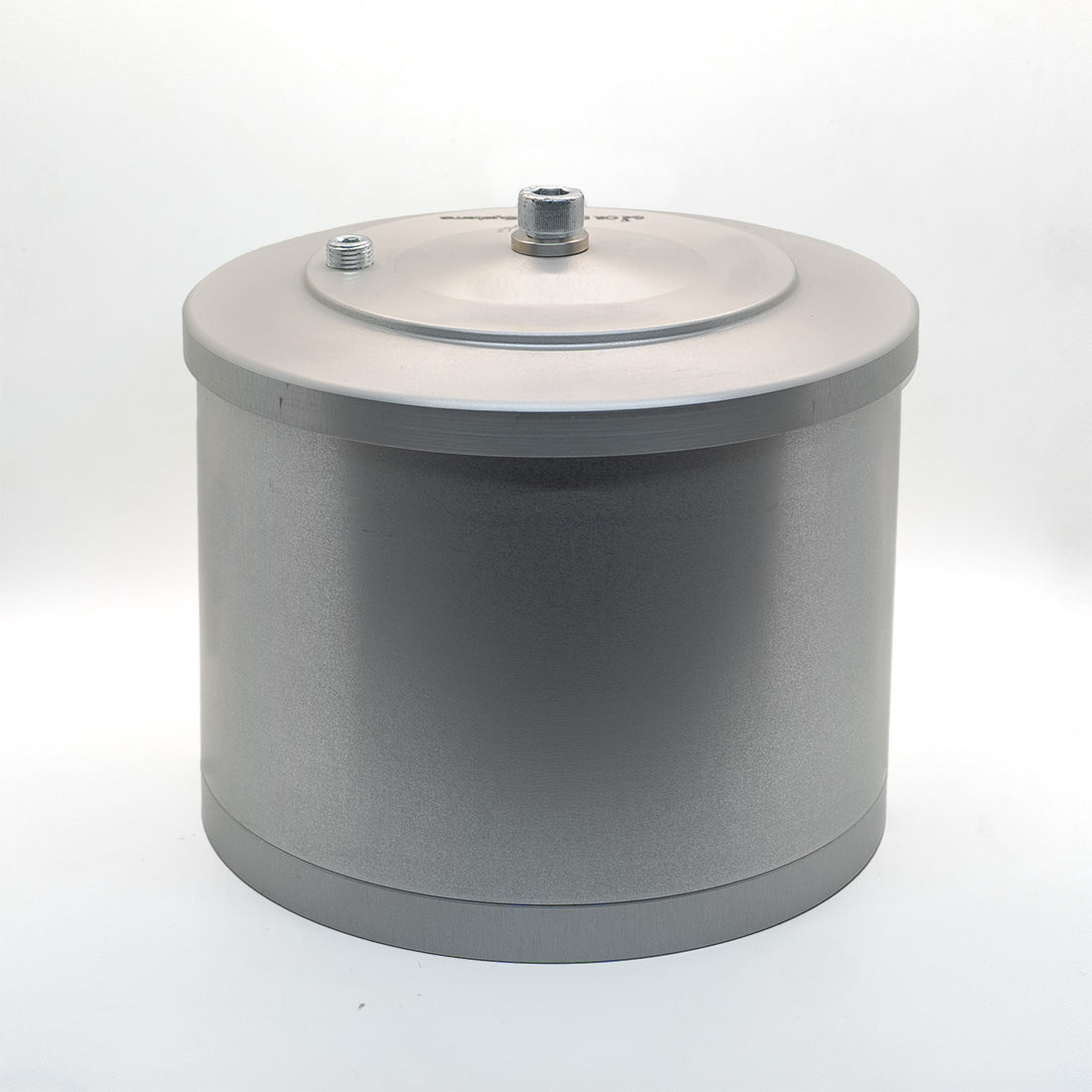

  • 1 EXTREME 4 filter housing (HX4XLH)
  • 1 EXTREME 4 filter element (EX4XLE) with o-rings (GX4)
  • 2 In/Out housing fittings (ANMJ06-7-16-20OR90) + (AN06-06FJ)
  • 1 Mounting bracket and bracket hardware (ZBRCKX14)
  • 12ft of hose to be cut to your preference (LW06BK)

Pressure & Return Port Options

  • DD15 and Detroit 60 Series
    • 1 Pressure port fittings (T18NPT)+(AN06-02MP90) + (AN06-06FJ)
    • 1 Return port fittings (MP12-06BR)+(AN06-06MP)+(AN06-06FJ90)
  • DD5,DD8,DD13,DD16
    • Pressure port Fittings (AN06-04MP) + (AN06-06FJ)
    • Return Port Fitting (AN06-04MP) + (AN06-06FJ)


Product Notes:

  • Oil sample valve not included. Order Oil Sample Valve Here.
  • Behind-the-cab installation: If you plan to mount your kit behind the cab, contact us to add additional feet of hose to your cart to ensure proper routing and fitment.

  • DD-series engine connection points: For DD5, DD8, DD13, and DD16 applications, the pressure and return fittings connect directly to the oil rifles on the engine block.

  • Possible additional compatibility: This oil rifle connection method may also be usable on DD15 and Detroit Series 60 applications, depending on the engine configuration.
