10L1000 Transmission Fluid Bypass Filter Kit (Diesel & Gas Engines)

For 2020–Present GM HD Trucks (Diesel and Gas Engines)

Built to protect the GM 10L1000 where factory filtration stops.
The GM 10L1000 10-speed automatic transmission relies on precise hydraulic control through solenoids, clutch-control valves, and a highly sensitive valve body. Even microscopic debris circulating in the transmission fluid can interfere with these components over time, contributing to erratic shifting, delayed engagement, and long-term wear.

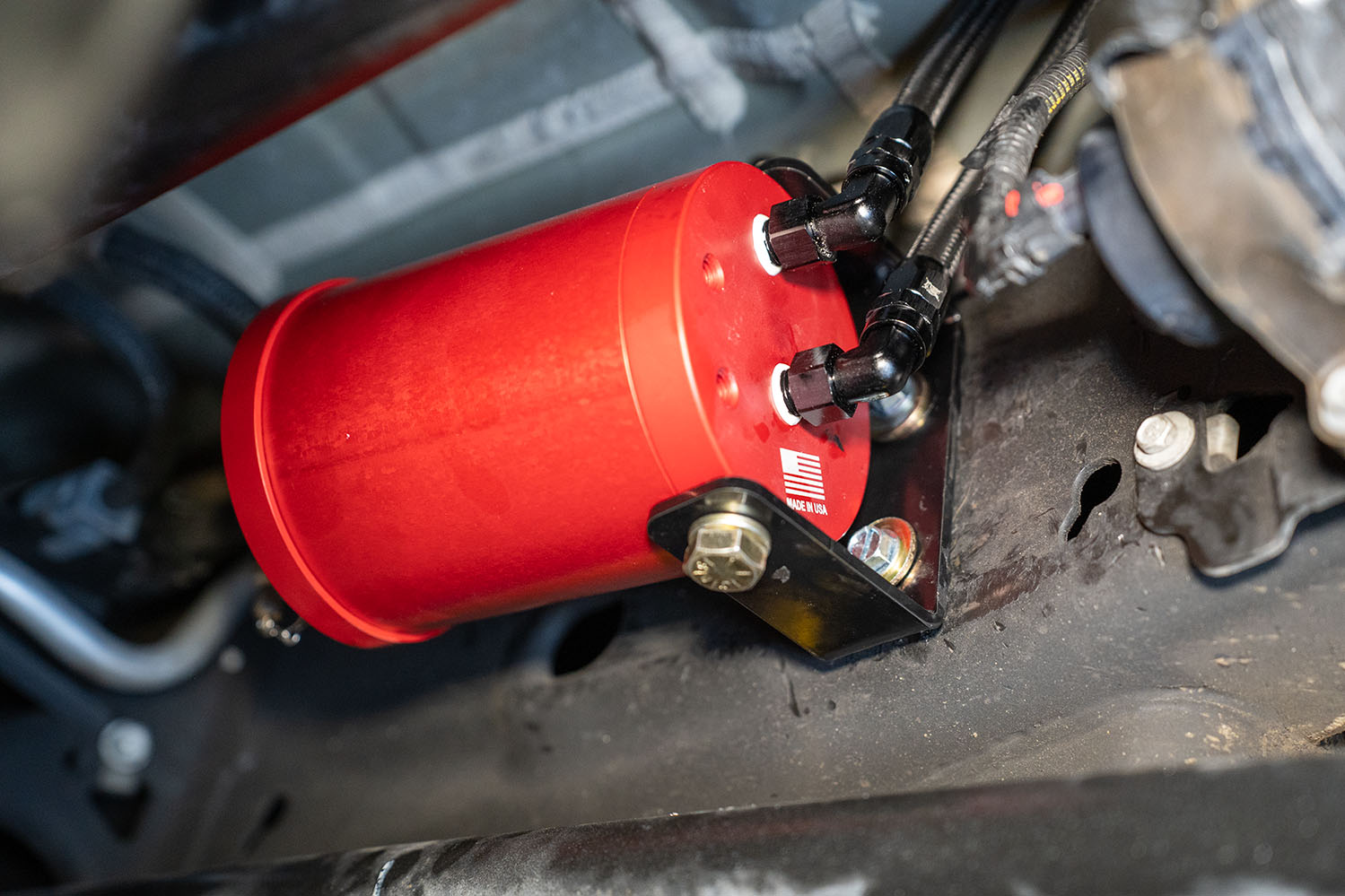

The Insane Diesel 10L1000 Bypass Transmission Fluid Filter Kit is engineered specifically for 2020-present GM HD trucks equipped with the 10L1000, providing continuous fine-particle filtration that the factory system is not designed to capture.

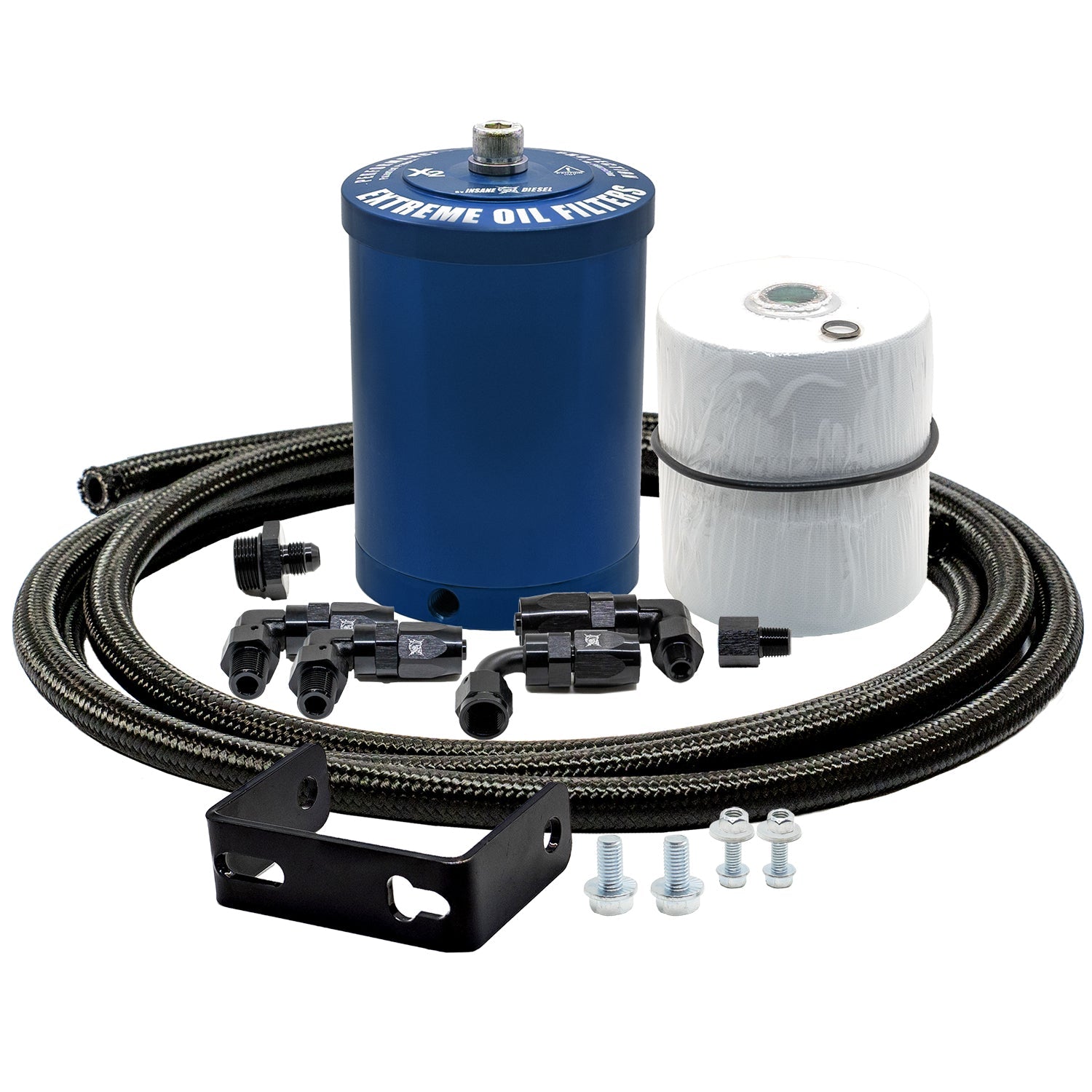

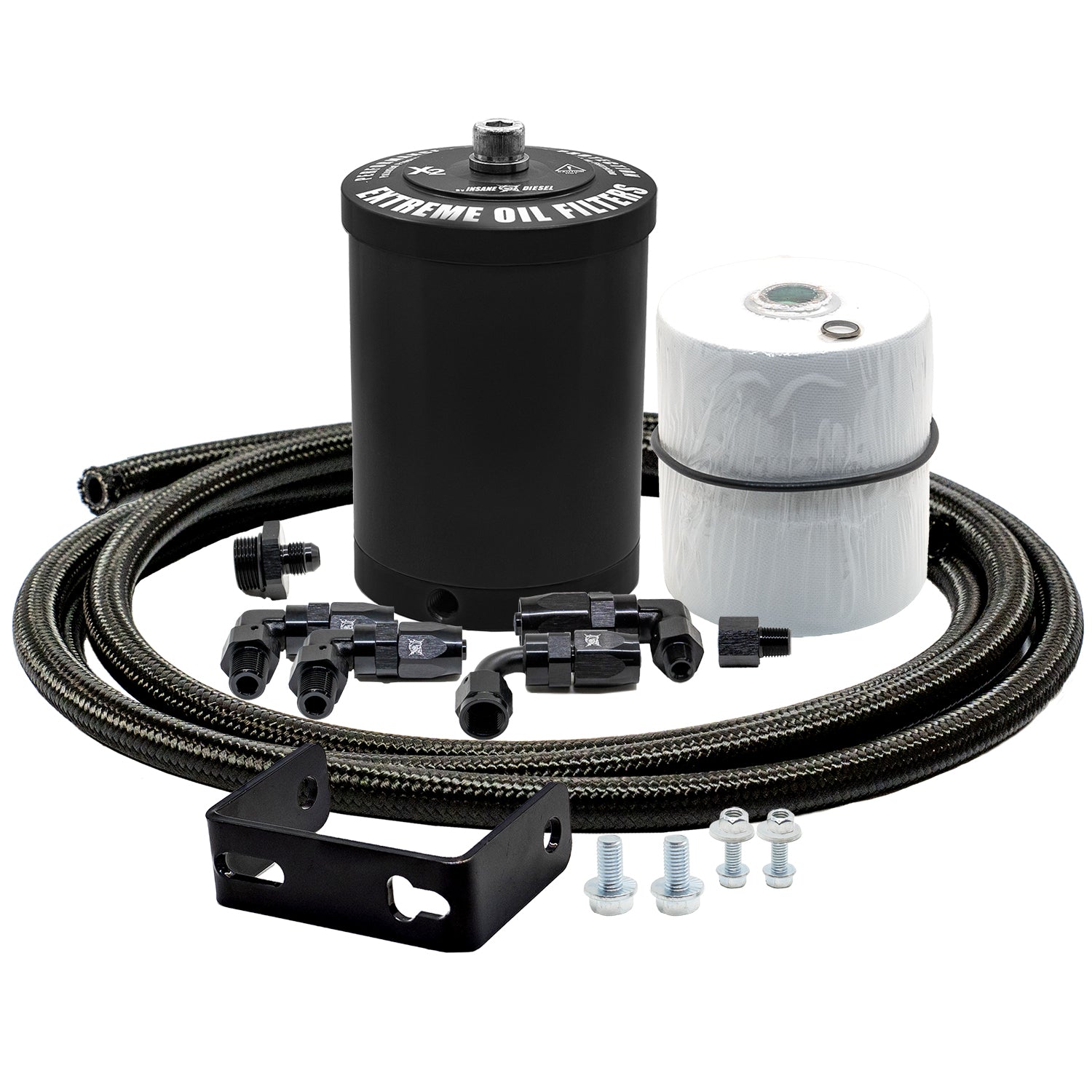

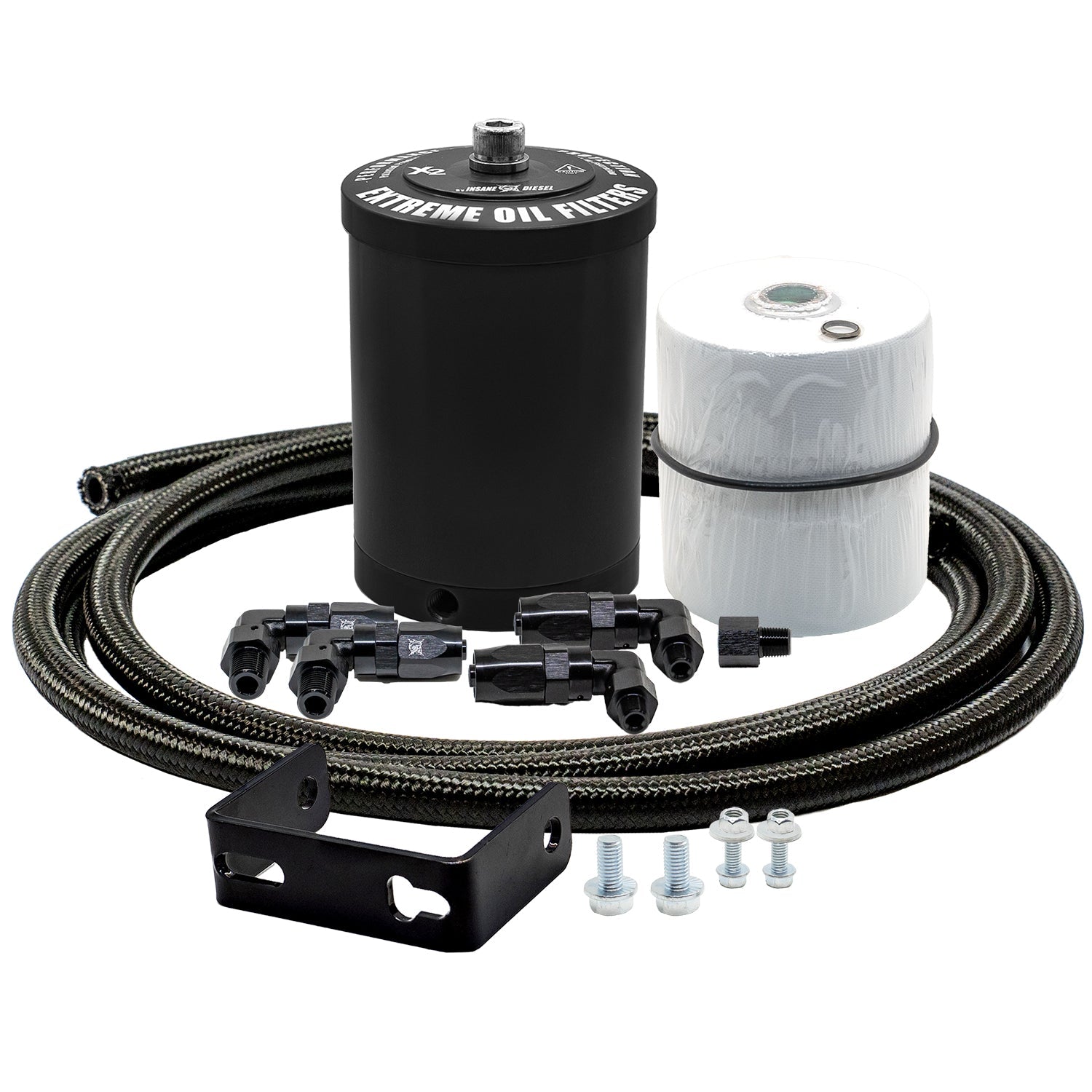

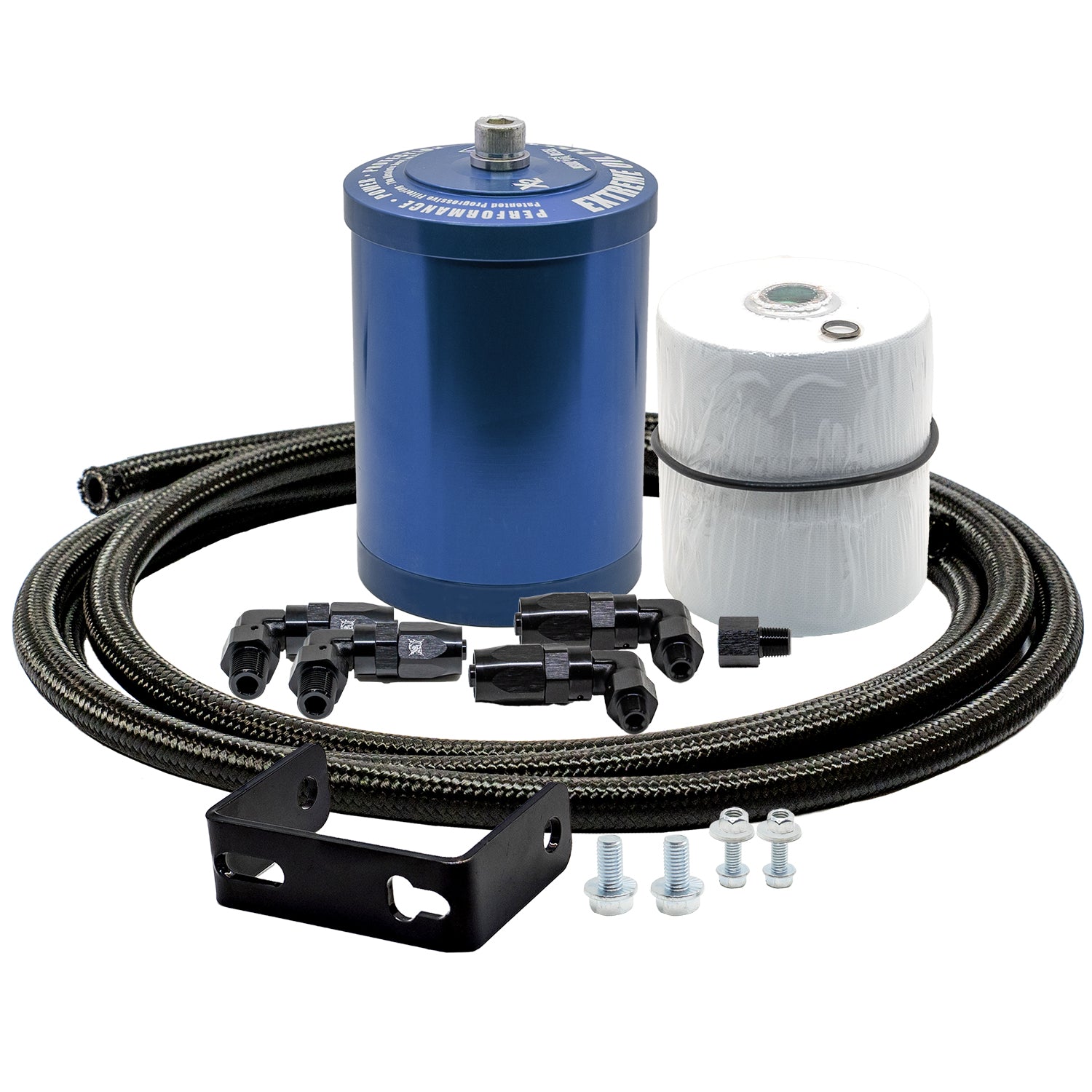

Parts Included In This Kit

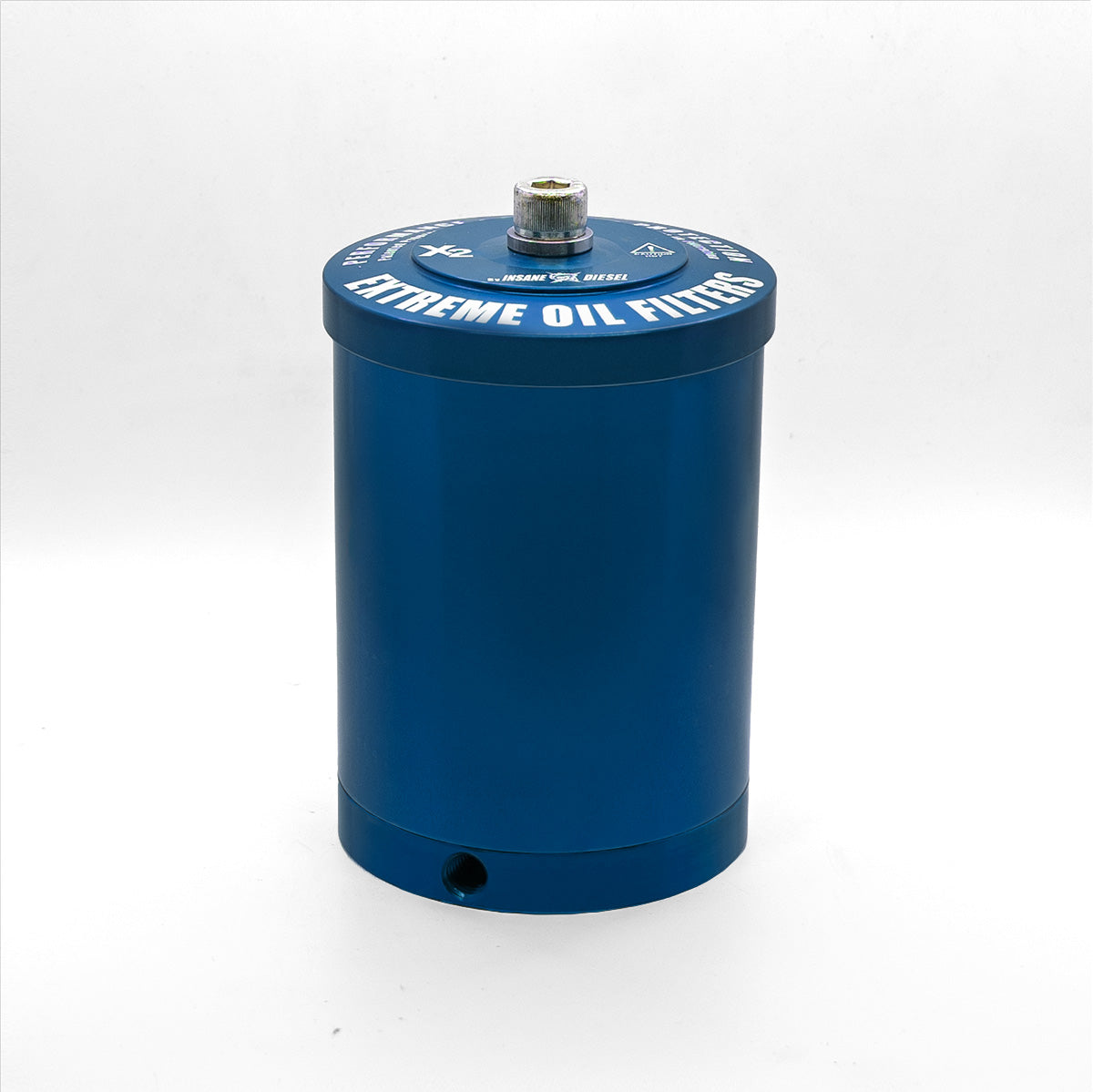

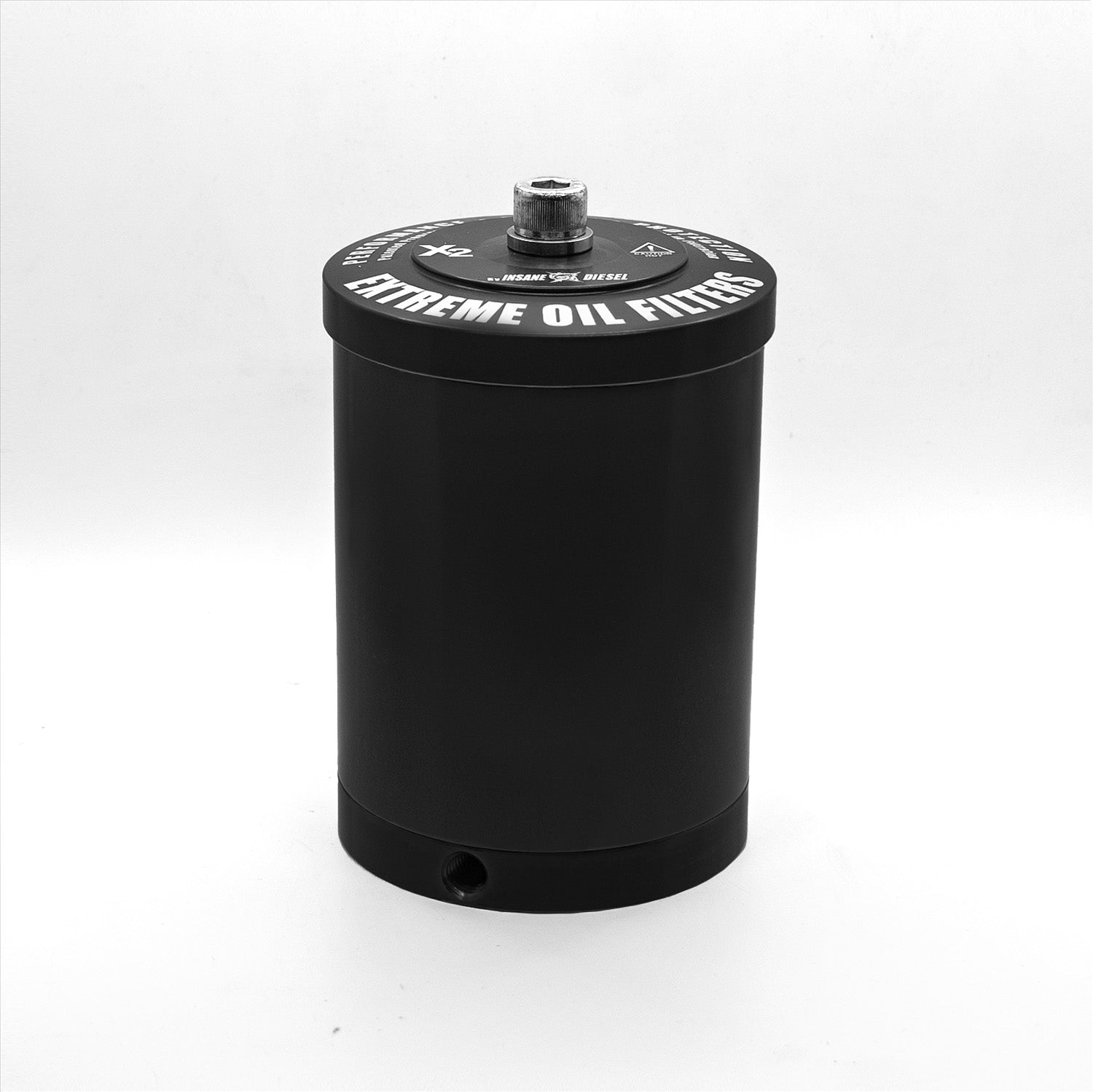

• 1 EXTREME2 filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME2 filter element (EX2ME) with o-rings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)
• 1 Mounting bracket (ZBRCKX12)

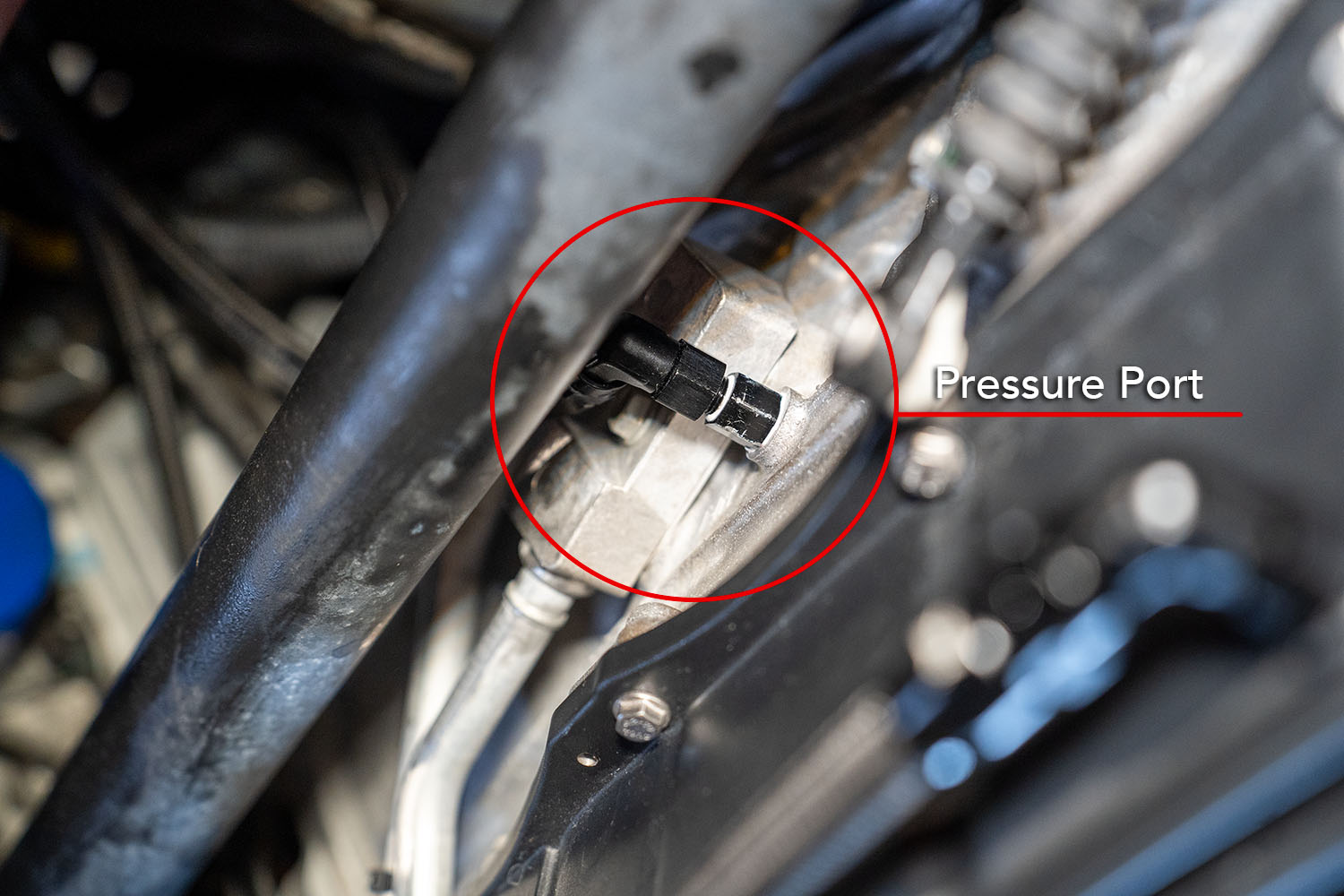

• 1 Pressure port fitting (1/8Orifice) + (AN06-02MS90)

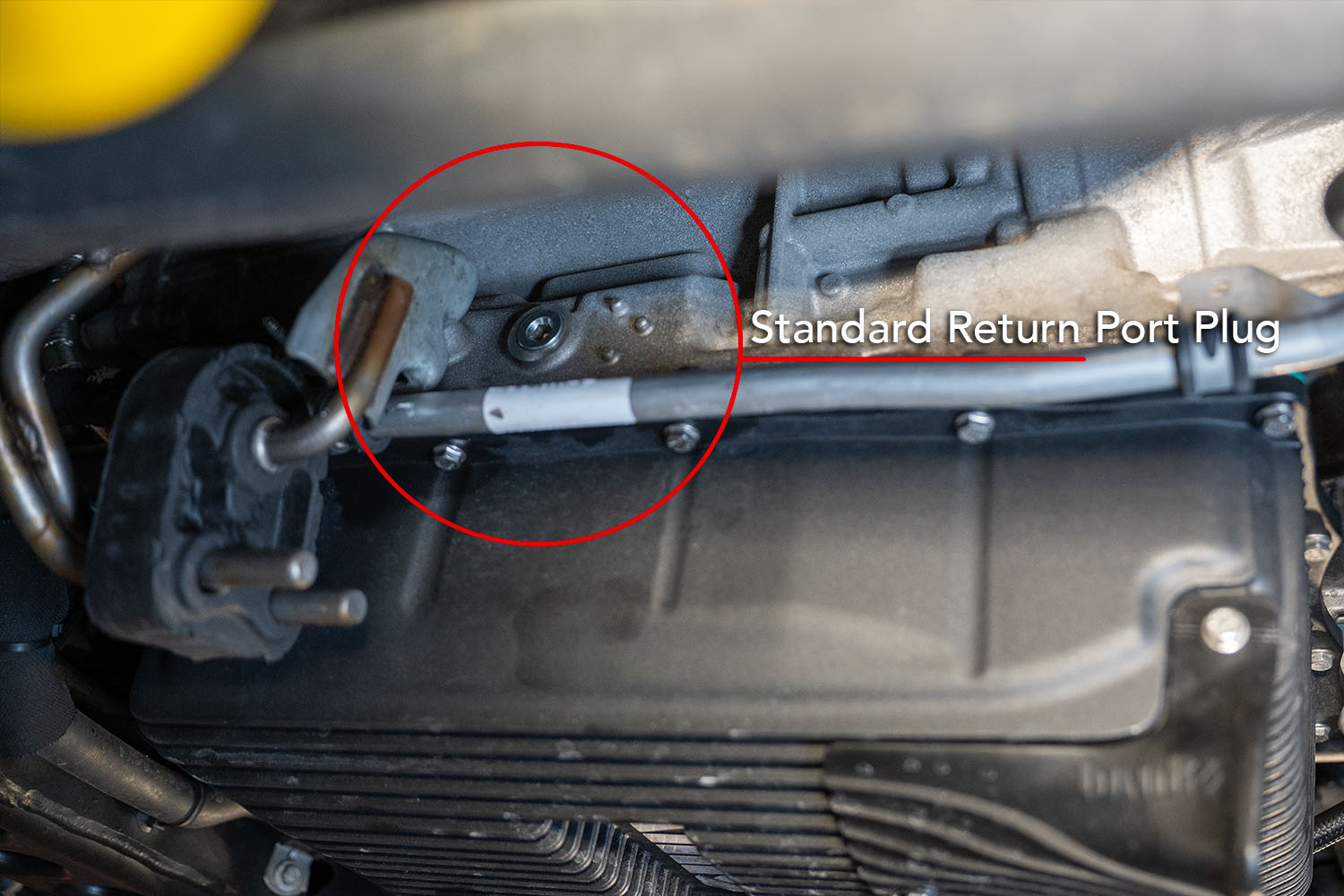

  Stock Return Port Fittings

  • 1 Return port fitting (AN06-06FJ90) + (AN06-18mmX1.5)
  • 7ft hose to be cut to your preference  (LW06BK)

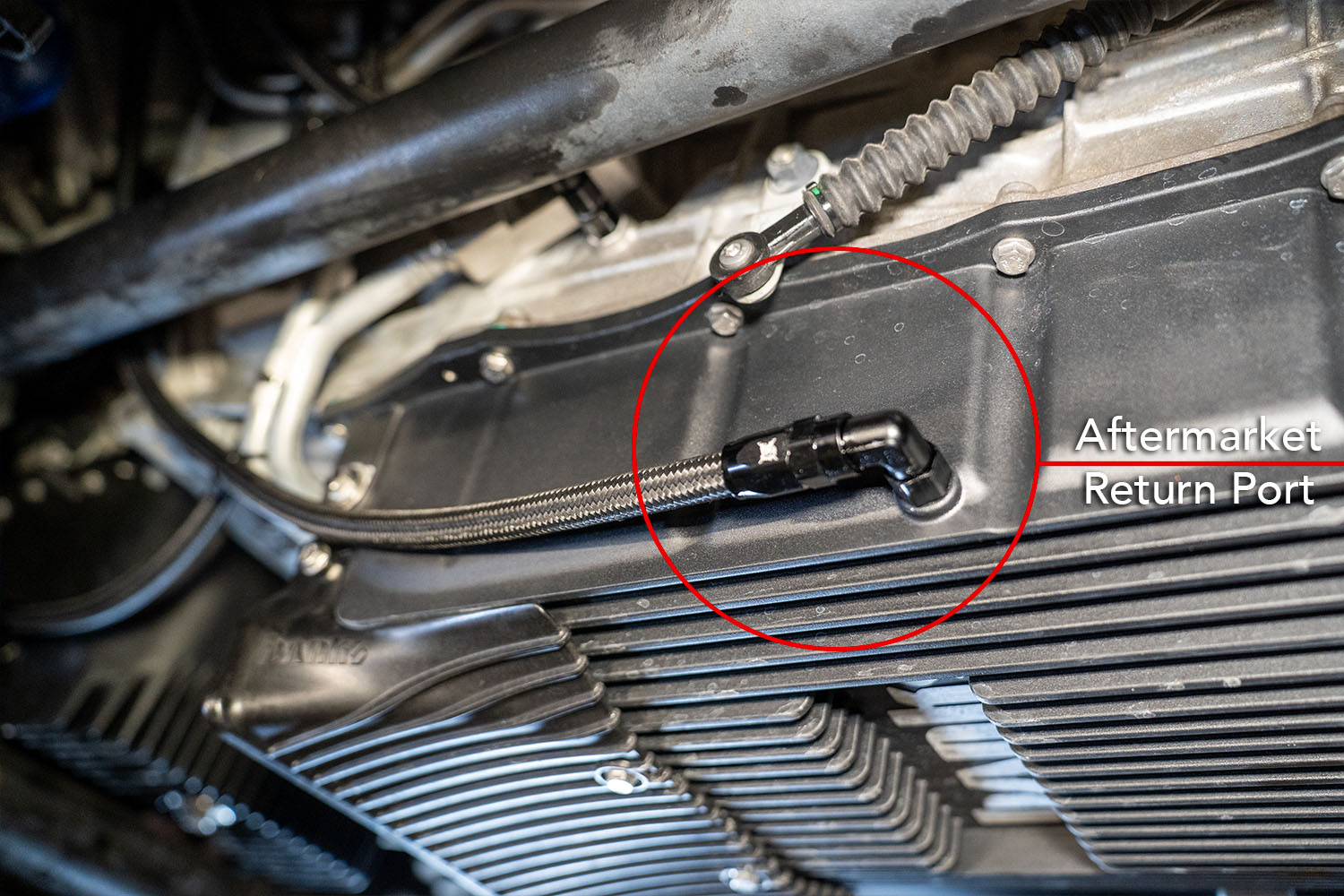

  Aftermarket Pan Return Port

  • 1 Return port fitting (AN06-02MS90)
  • 6ft hose to be cut to your preference  (LW06BK)



  Designed exclusively for the GM 10L1000

  This kit is built for:
      •    2020–Present Chevrolet Silverado 2500HD & 3500HD
      •    2020–Present GMC Sierra 2500HD & 3500HD
      •    Engines: 6.6L Duramax Diesel (L5P) and 6.6L Gas (L8T)
      •    Transmission: GM 10L1000 only


  Installation Guide
